In my pre­vi­ous post, Jon Hicks raised the IE6 flick­er­ing issue, which has been tor­ment­ing design­ers and coders alike for too long now. At first I thought there was no ele­gant solu­tion to this prob­lem, but after a few error and trial ses­sions I came up with a solu­tion that gets rid of the flick­er­ing — in any situation.

What changed?

First of all I need an extra div that wraps the ul and li ele­ments. Orig­i­nally the ul con­tained the large back­ground image. How­ever I will need the ul for another pur­pose, namely to counter the flick­er­ing. Thus in this ver­sion the extra div holds the main back­ground image. The width and height of the ul matches the group of li ele­ments. The markup needed just lit­tle change:

<body id="welcome">
<div id="header">
<ul id="nav">
<li id="wel"><a href="welcome2.html">welcome</a></li>
<li id="pro"><a href="products2.html">products</a></li>
<li id="sup"><a href="support2.html">support</a></li>
<li id="con"><a href="contact2.html">contact</a></li>
</ul>
</div>
</body>

I also need a new matrix. In order to counter the flick­er­ing I need to set a back­ground to the ul that matches the hover states of the indi­vid­ual li ele­ments. Below I’ve included the new matrix:

matrix

The first 4 rows are used for the dif­fer­ent ul back­grounds. As you can see they per­fectly match with the hover states on the indi­vid­ual pages. The other two rows include the other states I need for the nav­i­ga­tion to func­tion prop­erly. Of course some tabs are included more than once, but this is needed because I need the entire row to dis­play as the ul back­ground, instead of just indi­vid­ual ele­ments. The size in kilo­bytes is exactly the same as the pre­vi­ous matrix.

Some of the CSS has changed too, most notably the back­grounds for the ul elements:

ul#nav {
position: relative;
top: 68px;
left: 188px;
width: 346px;
margin: 0;
height: 22px;
list-style-type: none;
overflow: hidden;
}

body#welcome ul#nav {
background: transparent url(nav_f_2.png) no-repeat 0 0;
}
body#products ul#nav {
background: transparent url(nav_f_2.png) no-repeat 0 -22px;
}
body#support ul#nav {
background: transparent url(nav_f_2.png) no-repeat 0 -44px;
}
body#contact ul#nav {
background: transparent url(nav_f_2.png) no-repeat 0 -66px;
}

Nat­u­rally the posi­tions of the back­grounds have changed in the li ele­ments because I use a dif­fer­ent matrix. Again, down­load the css file to have a closer look. So, there you go, nav­i­ga­tion matrix reloaded, with­out the flickering.

This item was posted by Dan Rubin on Wednesday, May 5th, 2004.

Categories:

You can follow comments on this item via the RSS 2.0 feed.

Comments are closed.

31 comments on “Navigation Matrix Reloaded”

  1. Posted by Jon Hicks on Wednesday, May 5th, 2004.

    Superb! Thats what I call ser­vice! I’m now des­per­ately try­ing to think of any other bugs I’d like you to fix for me.…

  2. Posted by Davezilla on Wednesday, May 5th, 2004.

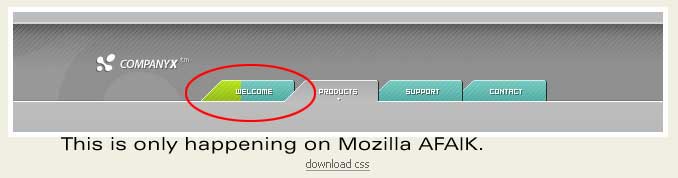

    Well, your code worked bet­ter for me in the fisrt iter­a­tion. Today I see this.
